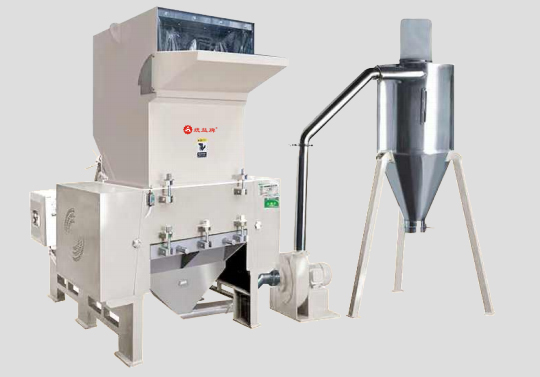

TGP-Q Series Powerful and Silent Grinder

Working Principle

Powerful crusher adopts the structure of claw knife and slice knife, crushing all kinds of plastic defective products. The crushed material and the new material in the storage barrel are mixed according to the adjustment of the ratio valve of the two materials, and then directly transported to the moulding machine by the suction machine.

Outer Structure Diagram

Features

1, silent crushing building body to explore the use of fully enclosed silent design, placed sound-absorbing cotton to effectively reduce the noise generated when crushing.

2, mute crusher using a unique design of the internal heat conduction system, under the premise of maintaining a fully enclosed, the heat generated by the motor out of the machine to extend the life of the motor.

3, motor overload protection device, emergency switch device, the industry is equipped with phase sequence controller, can prevent the adverse consequences caused by the motor reversal.

4, equipped with power isolation switch, maintenance, operation is more convenient.

5, movable stainless steel hopper, handle switch and other user-friendly design, easy to operate.

6, the feed opening is large, large pieces of waste material is easy to crush, can be moved, easy to clear the material, change the net quickly.

7, large machines can be installed cooling water circulation system, the heat generated by the machine to the outside of the machine, can effectively reduce the working temperature of the machine body and to avoid crushing material caking.

8, small machine with casters, easy to move. Large machine fitted with adjustable shock-absorbing feet (optional), work smoothly.

9, stainless steel storage box cleaning fast, convenient, can also be optional suction mouth type stainless steel storage barrel, with the blowing system to achieve the effect of automatic collection.

10、Optional equipped with cyclone, can effectively separate the dust.

11、Optional equipped with feeding windmill, can automatically feed the material, improve efficiency.

Scope of Application

Suitable for crushing all kinds of plastics, including injection moulding machines, bottle blowing machines and other waste materials can be centralised crushing and recycling and then adjusted and mixed with new materials for use in the host.

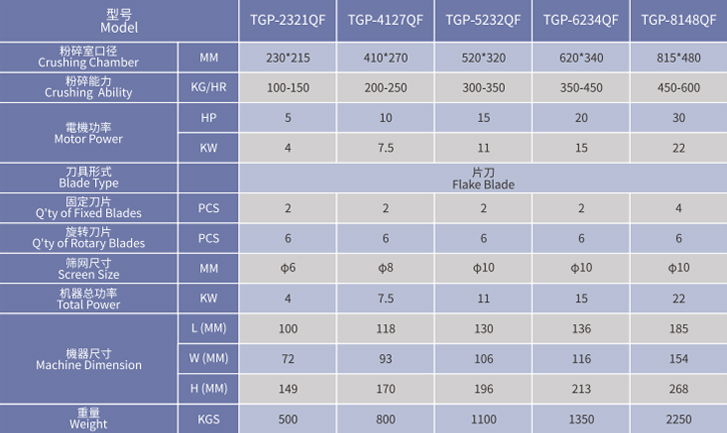

Specification table of blade type

Gripper type specification table
