TCD Series Box Dryer

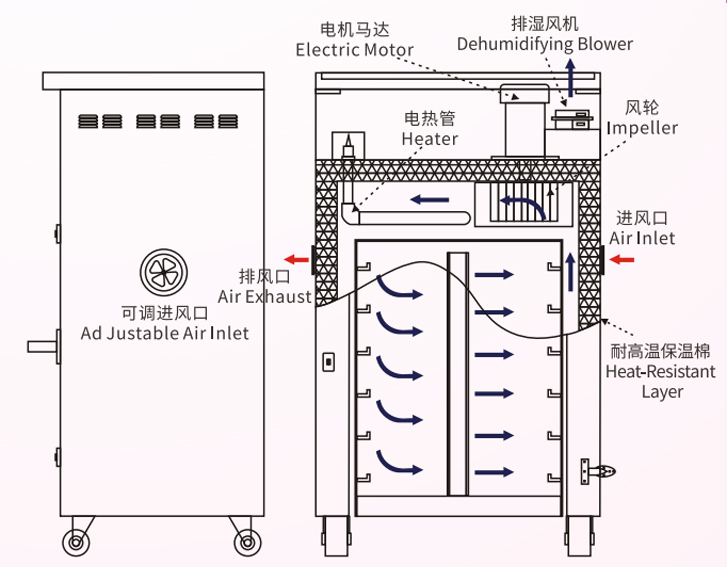

Working Principle

The material to be dried is put into the movable material tray, when the power supply is turned on and running, the powerful wind wheel is started to force the air entering from the air inlet to blow to the electric heating tube air is heated up by the electric heating tube and passes through the partition wall with holes, and uniformly blowing to the material to carry the air with moisture will be pumped out of the oven outside the top of the dehumidifying blower. This is repeated to achieve the effect of moisture removal and drying.

Characteristics

　　1、Using PID temperature control system to provide uniform drying effect.

　　2、The system has temperature setting and actual temperature display screen, integrating temperature and time control in one, which is convenient for setting drying parameters of various materials.

　　3、High temperature sealing door maintains consistent temperature and reduces heat loss, saving power.

　　4、Strong temperature resistant air supply and unique wind structure design, to ensure the internal temperature distribution is uniform and accurate, drying and dehumidification effect is good.

　　5, the baking tray is stainless steel design, can avoid in the drying process caused by the original section pollution.

　　6, the efficiency of the back hoarding hot air recycling design, power saving, durable, can dry a variety of plastics at the same time, energy saving. High

　　7、Adjustable air valve, easy to adjust the air volume, adjustable over-temperature protector to avoid over-temperature drying.

　　8、Safety protection and fault indication system is perfect including: no fuse circuit breaker for the main power supply; over temperature overload: motor overload and other protections, operation and maintenance is simple and convenient.

　　9、Failure intelligent alarm equipped with a warning light immediately react to the fault.

　　10、Time intelligent reservation-24 hours timer, can be pre-set at any time drying, easy to operate.

　　11, the appearance of powder baking paint, simple and tight structure, space-saving, movable trolley design, easy to move

　　12, baked volatile materials, must be equipped with exhaust function device optional air inlet, exhaust flange (optional), take over the high-temperature volatile gases will be discharged outdoors, to protect the safety of personnel.

Scope of Application

Widely used in the drying of any raw materials of glue, and can dry different materials and colours at the same time; especially suitable for drying materials with high requirements for temperature accuracy, low dosage and multiple colours; also suitable for use in preheating or drying treatment of food, pharmaceutical, electronic, electroplating and other industries.

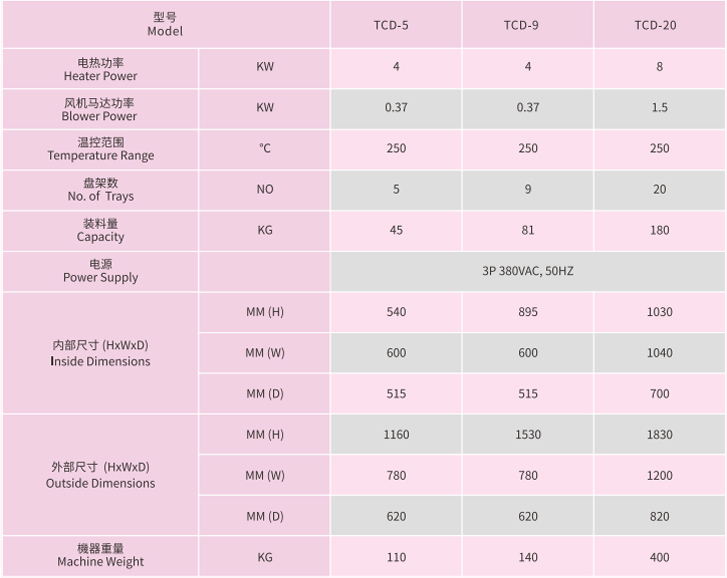

Product specification table

When choosing the hot air drying oven, please follow the 90% of the loading capacity of each model as a good choice to achieve high economic efficiency.

Please do not put anything on the top cover of this machine to facilitate the heat dissipation of the motor and control parts.
